Yamaha answers Brose and Bosch’s new mid-drive e-bike motors with its own powerhouse
On the heels of big announcements for new motors and battery systems from both Bosch and Brose, Yamaha has just unveiled its own new e-bike system. And the Japanese e-bike motor manufacturer is playing to win against its German rivals.
Yamaha unveils new e-bike mid-drive motors
Yamaha is no newcomer to the electric bicycle industry. In fact, Yamaha basically created the industry when the company built the world’s first production electric bicycle back in 1989.
And now Yamaha is demonstrating that it intends to maintain its first mover advantage in the market with the release of its new 2020 mid-drive motor lineup.

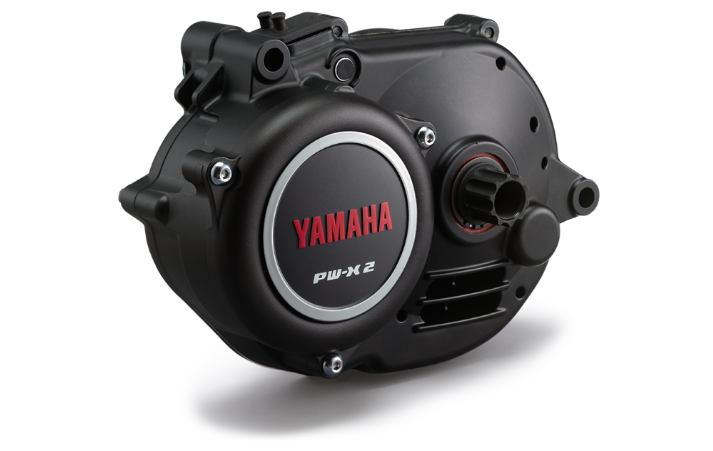

Yamaha’s new motors, the PW-X2 and PW-ST models, are optimized for high performance electric trekking and mountain bikes.
The PW-X2 is rated for 250 W continuous, though actual peak output is usually much higher, like most mid-drive e-bike motors. The motor can create between 70-80 Nm of torque, depending on the model. It is rated for a top speed of 25 km/h (15 mph), though a higher speed version is available that can provide electric assist up to 45 km/h (28 mph). The motor is intended for use in electric mountain bikes and provides a massive 50% more power than the previous PW-X motor.

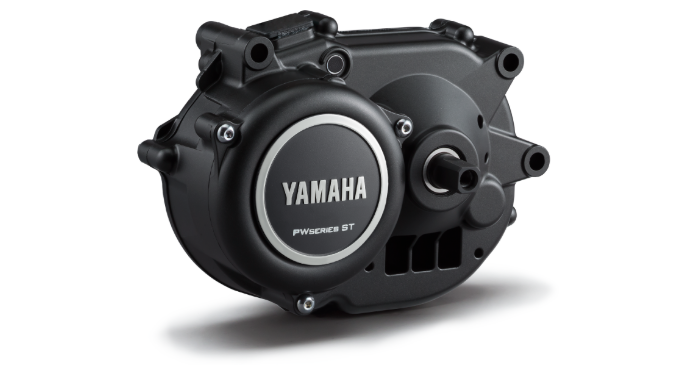

Yamaha’s new PW-ST motor is optimized for more mixed use e-biking and e-trekking.
Both the PW-X2 and the PW-ST mid-drive motors feature Yamaha’s new quad-sensor technology. Four different sensors monitor the bike’s speed, pedal cadence, pedal torque, and bike angle to continuously alter power output optimized for each situation. By monitoring the e-bike’s angle, the system can determine whether the bike is riding up or downhill and continuously adjust power output with respect to the other three sensor inputs to properly suit every unique scenario.
Yamaha also offers multiple battery options with flexible mounting solutions to allow manufacturers to mount the batteries to different locations of a bike frame. Options include mounting the battery on the downtube, in a rear rack or directly with the mid-drive unit itself.
The included Yamaha displays also offer integration to smartphone apps to allow features such as GPS navigation, which can be helpful for off-road e-bikers exploring new trails.
While I don’t have as much experience on Yamaha drives as I do on Bosch drives (mostly because Bosch seems to be running away with the market), I’ve always found Yamaha drives to be top-notch quality.
I did a pretty tough ride on a Yamaha Wabash electric gravel bike and I couldn’t have asked for the Yamaha drive system to work any better than it did. The system was easy to use, comfortable to navigate the settings and modes, and helped me ride up and over just about any obstacle in my way — or at least that my riding skill level would let me.
The power was smooth, not jerky, and the four different levels provided a nice range of assist level without feeling overwhelming.
